  1. Collections
  2. Transaction Management

Webhook

PreviousTransaction ManagementNextTransaction Status Management

Was this helpful?

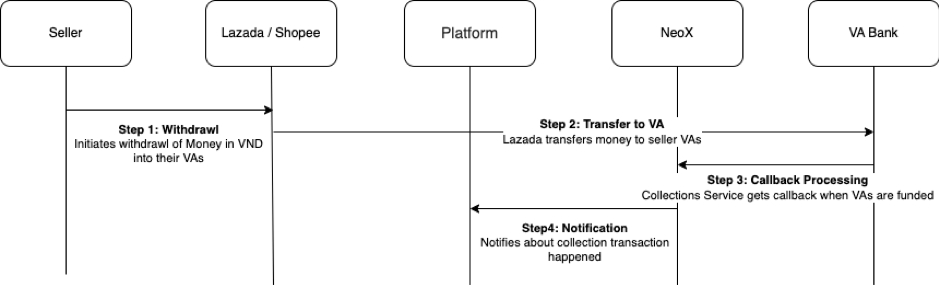

Sequence Diagram

Event data

Parameter
Data Type
Description

transId

String

The ID of transaction.

type

String

TRANSACTION

merchantCode

String

Merchant Code

transDate

String

The time of transaction.

virtualAccountRequestId

String

The ID of seller/business is provided by merchant.

virtualAccountId

String

The ID of virtual account.

accountName

String

The account name.

amount

Number

The amount of collection transaction.

note

String

Note.

serviceInformation

Object

Extra data includes "code", "groupId", "desc"

debitorInformation

Object

Debitor info object include: "bankName": Debit fom bank name "bankAccountNumber": Debitor bank account "bankAccountName": Debitor bank account name "bankRemark": Transaction remark received from debitor's bank.

secureHash

String

(Base64)

Use SHA256 to hash the above parameters (sort the key by Alphabet order) + Secret Key (configured on Merchant Portal, in the Collection service menu)

Sample data

{
    "transId": "FT246560944209",
    "type": "TRANSACTION",
    "merchantCode": "UFLIYL",
    "transDate": "2023-10-10T07:06:37.436Z",
    "virtualAccountRequestId": "54f35db9-553b-4078-8271-7863162903c0",
    "virtualAccountId": "NEO0001675",
    "accountName": "HIEP HOANG",
    "amount": 20000,
    "note": "NEO1696918592059",
    "serviceInformation": {
        "code": "GRAB",
        "desc": "testtttt",
        "groupId": "DRIVER"
    },
    "debitorInformation": {
        "bankName": "Simulator connector",
        "bankAccountNumber": "09874732621",
        "bankAccountName": "Simulator account",
        "bankRemark": "691079-CTY TNHH TMDT HIEP HOANG payment for order 123456 NEO188879_NEO0001675"
    },
    "secureHash": "dXNENfQTIa9KgImBXJu2qFRprAcPhYydbBY8AlnmvgY="
}

With the secretKey "SUMTING", the string used to create secureHash will be:

HIEP HOANG20000Simulator account09874732621Simulator connector691079-CTY TNHH TMDT HIEP HOANG payment for order 123456 NEO188879_NEO0001675UFLIYLNEO1696918592059GRABtestttttDRIVER2023-10-10T07:06:37.436ZFT246560944209TRANSACTIONNEO000167554f35db9-553b-4078-8271-7863162903c0SUMTING
Configure the webhook
